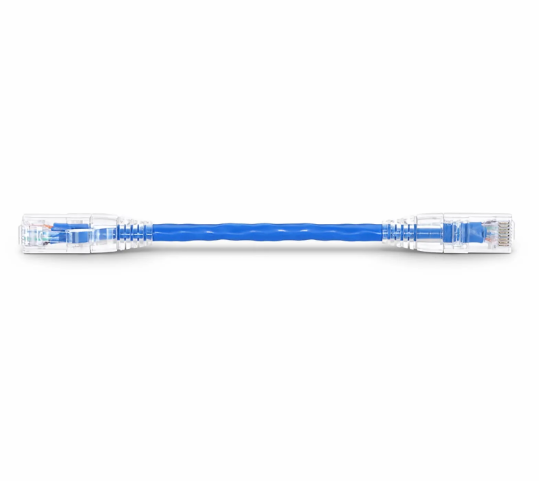

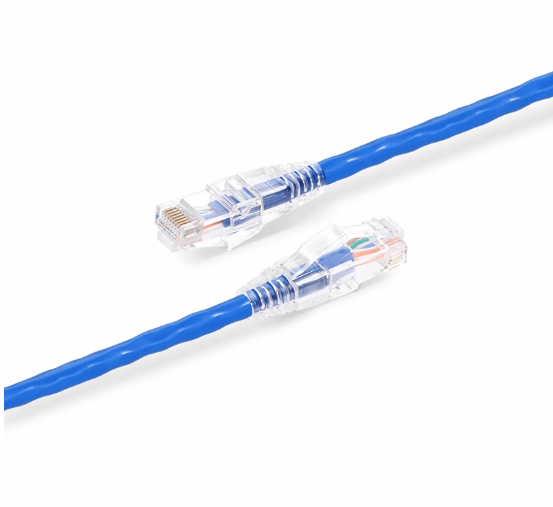

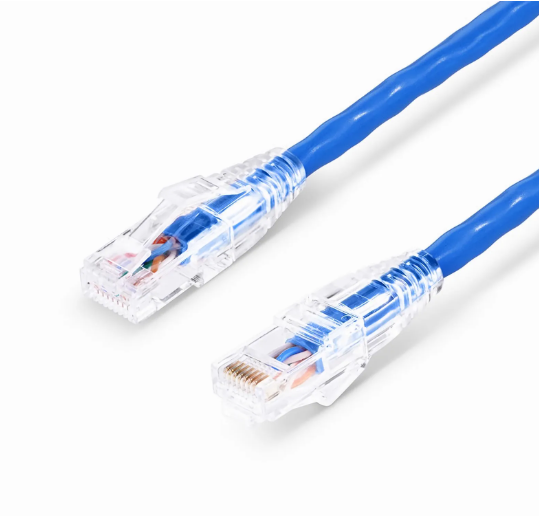

6in (0.15m) Cat5e Snagless Unshielded (U/UTP) PVC CM Ethernet Patch Cable, Blue
Cat5e UTP patch cable features 24AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
● Product origin: China
● Delivery time: 7 -10 workdays
We are manufacturer that could support you good quality with aggressive price. Believe that we are the best choice for you from many traders and resellers.
Accepted OEM/ ODM
Welcome to send us any of your questions and inquiries, we are more than pleasure to send you more information.
Cat5e UTP patch cable features 24AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
It exceeds the performance of the Cat5e Ethernet network cable standard and offers the cost-effective solution for indoor Gigabit Ethernet data center applications, supporting up to 1000Mbps and 250MHz within 100 meters of cable. Stranded copper patch cable can be used with a longer flex-life. Tested and verified to meet Cat5e component requirements for ANSI/TIA-568.2-D and ISO/IEC 11801 standards. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.
| Cable Type | Cat5e Snagless | Shielding Type | Unshielded (UTP) |
| Cable jacket | PVC CM (Round) | Cable Length | 6in (0.15m) (Including Plugs) |
| Data Rate Support | 10/100/1000Base-T | Maximum (Tested) Frequency | 250MHz |
| Gauge (AWG) | 24 (7/0.20mm) | Connectors | RJ45 (Male) |
| Conductor Type | Stranded ＞99.95% Oxygen-free Copper | Cable Outer Diameter (mm) | 5.5± 0.4 |
| PoE Compatibility | PoE/PoE+/PoE++ | Wire Scheme | T568B, Straight |
| Plug Type | 8 Position |
Support FSWireNet
|
No
|
| Operating Temperature | -20 to 75°C (-4 to 167°F) | Installation Temperature | -10 to 50°C (-14 to 122°F) |
